This product uses advanced intelligent technology to help customers improve production efficiency, reduce labor costs, improve product quality, and create sustainable competitive advantages for customers. This product is suitable for filling materials such as down, fly silk, granular cotton, fiber cotton, etc.
1.Suitable for filling materials such as down, fly silk, granular cotton, fiber cotton, etc.
2.Intelligent control, simple operation, precise and stable.
3.Accurate filling positioning, high precision, fast speed, long service life, and good stability.
4.Safe and reliable, low noise, long service life, no vibration, few faults, and strong maintenance.
5.Fully sealed equipment, without leakage, meets environmental requirements. Down does not leak out, protects the workshop environment, and prevents the occurrence of occupational diseases.
6.The equipment has a high degree of automation and is easy to operate and master.
7.Equipped with high-precision quantitative electronic scales, precise measurement, stable quality, and reduced raw material loss.
8.Measurement and filling will not damage the down, and can maintain the original softness and fluffiness of the down. The filled product is uniform and flat, reducing the workload of the subsequent beating process.
9.For fabrics with poor breathability and coated fabrics, there are specially configured filling tubes and automatic exhaust functions, which can be replaced with dedicated filling tubes.
10.You can see the state when filling the down, and during the filling process, all impurities and heavy metals in the down can be removed.

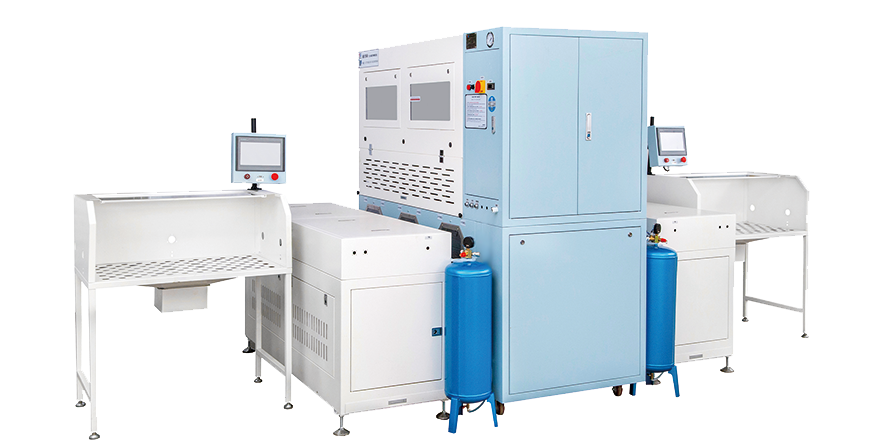

| Product model | 8212R |
|---|---|
| Type | 2side2pipe12weighing |
| Filling material | 50-90Down Flying silk Short fiber cotton Granular cotton |
| Filling port | 2 |
| Number of cycles | 12 |
| Filling unit size（down） | 0.2-25g |
| Filling unit size（cotton） | 0.5-40g |
| Maximum display accuracy | 0.01g |
| Storage capacity | 20KG |
| Power Supply | 4P 380AC |
| Rated power | 3.4KW |
| Air pressure requirements | 0.55-0.8Mpa |
| Host size | 2800*950*1900mm |
| Weighing box size | 2410*680*950mm |
| Work desk size | 1100*600*1500mm |
| Fan zise | 550*480*600mm |
| Min footprint size | 3.2*3.2m |
| Suggested site size | 4*3.5m |
