It uses fiber laser to output laser, has high electro-optical conversion rate, is compact, does not require external water cooling equipment, and has good quality. Fiber lasers are the most advanced lasers in the world and have a long service life.

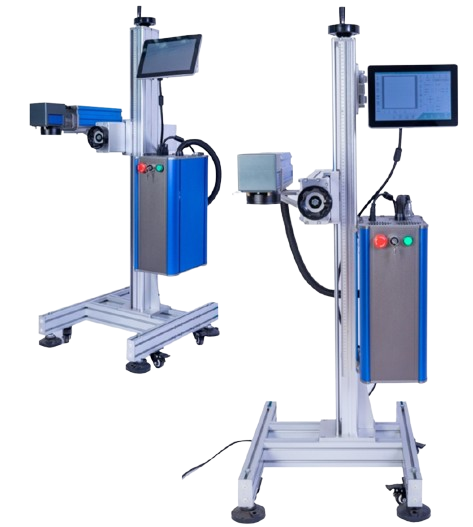

Fiber 20w flying
| PART | DESCRIPTION |
|---|---|
| Power | 20W |
| Laser wavelength | 1064nm |
| Repeat frequency | 20-200KHZ |
| Schema Gaussian glory | < 1.2 |
| Marking range | 100*100mm (real range optional) |
| Long carving depth | ≤4mm |
| Engraving line speed | ≤10000 mm/s |
| Minimum line width | 0.01mm |
| Minimum characters | 0.15mm |
| Repeat accuracy | ±0.02 |
| Power supply | 220V/50Hz |
| Whole machine power consumption | 500W |
| Dimensions | 825mmX545mmX1425mm |
| Total Weight | About 60kg |
| Operating system | Embedded touch marking system or 10.1-inch touch screen |
| Cooling method | Built-in air cooling |
| Control interface | Standard USB |
| File format | The font/font size if the Windows operating system font library |
| Laser type | Wind makes the theoretical life of fiber lasers 100,000 hours |
| Part | Description |
|---|---|
| Laser | Maxphotonics |
| Main control chassis | Laser power supply |
| Focus system | Dual red light autofocus system |
| Inkjet code indicating system | Built-in contour, size, orientation and position indication |
| Lens system | Imported wavelengths, full range of lens sets |
| Cooling System | Air-cooled |
| Laser scanner | Integrated optical base design, professional digital galvanometer, German motor high-speed galvanometer |
| Laser professional control card | The latest flight marking system (independent research and development) |
| Computer and marking software | 10.1 inch touch laser coding system (independent research and development) |
| Special bracket | Fly-specific lifting and moving table |
| Encoder | High-precision differential |
