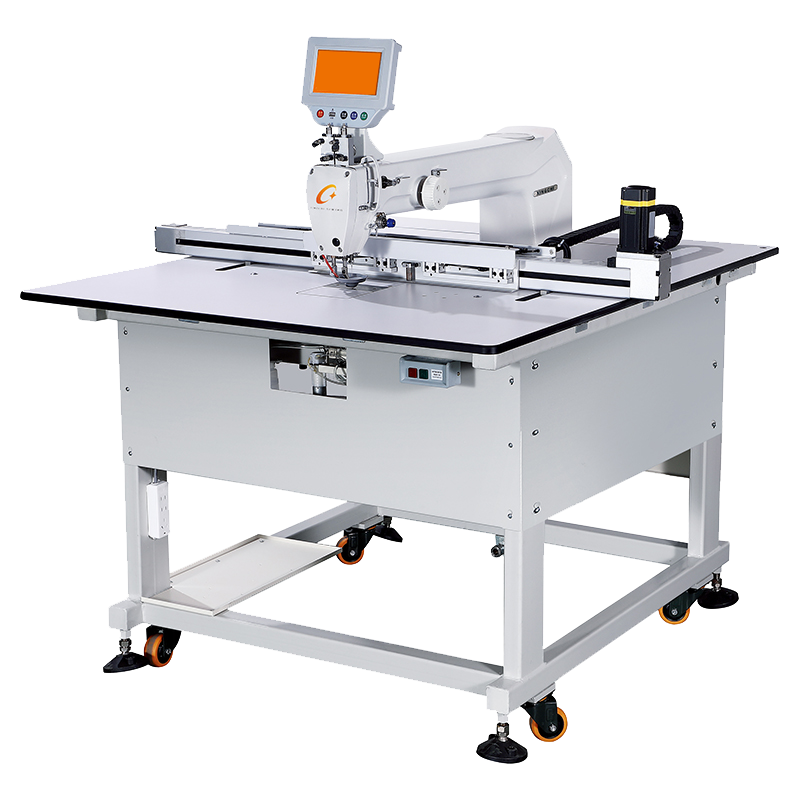

Fully automatic clothing template machine

$2000+

The template machine is easy to operate, with a short training cycle, automated production, stable work and high accuracy. It can be replicated and processed in large quantities, reducing manual labor and greatly improving processing efficiency. By using a quickly redesigned template, various sewing forms such as straight, diagonal, circular, and interwoven threads can be achieved, suitable for various fabrics such as leather, pure cotton, and synthetic fibers.

Consultation details Become a Distributor

Product features

1.Program according to different fabric thicknesses to adapt the presser foot to different fabrics and improve sewing quality.

2.Double screw DC servo motor drive, with higher stability and more perfect stitching.

3.The intelligent oil supply system can automatically change the oil supply amount of the rotary shuttle through different sewing speeds.

4.Using a laser ranging sensor module, it can automatically sense whether the bottom line is used up in real time and achieve bottom line detection function.

Product features

Product modelMS-GC90-130
Line traceSingle needle 301 stitch
Maximum sewing speed3000sti/min
Max sewing speed9m/min
Max moving speed50m/min
Max sewing area900*1300
Feeding deviceIntermediate feed(Pulse motor drive)
Needle pitch0.05-12.7mm
Needle modelDP×57-12#
Number of pattern storageMax 999 pattern
Auxiliary presser foot drive modePneumatic
Auxiliary presser foot heightMax 15mm
Intermediate presser foot lift amount20mm
Intermediate presser foot stroke0.2-8mm
Template clamping methodPneumatic clamping
Packaging size2380*1030*1340mm
Rotary shuttle2 rotary shuttle
Wire sweeperStandard configuration
Tangent deviceStandard configuration
Electronic wire clipperStandard configuration
Wire breakage sensorStandard configuration
Data storage method128Mb,USB2.0
Number of user programs200
Number of loop programs9
Spindle motor powerServo motor 750W
Power Supply220V 700VA
Air pressure requirements0.5Mpa 2.5L/min
Land occupation area1900*2270
Net weight505Kg
Gross weight575Kg
Overall weight580KG
